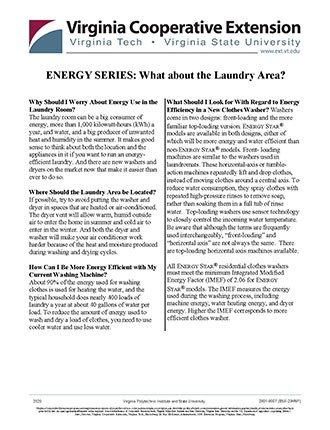

ENERGY SERIES: What about the Laundry Area?

Why Should I Worry About Energy Use in the Laundry Room?

The laundry room can be a big consumer of energy, more than 1,000 kilowatt-hours (kWh) a year, and water, and a big producer of unwanted heat and humidity in the summer. It makes good sense to think about both the location and the appliances in it if you want to run an energy- efficient laundry. And there are new washers and dryers on the market now that make it easier than ever to do so.

Where Should the Laundry Area be Located?

If possible, try to avoid putting the washer and dryer in spaces that are heated or air-conditioned. The dryer vent will allow warm, humid outside air to enter the home in summer and cold air to enter in the winter. And both the dryer and washer will make your air conditioner work harder because of the heat and moisture produced during washing and drying cycles.

How Can I Be More Energy Efficient with My Current Washing Machine?

About 90% of the energy used for washing clothes is used for heating the water, and the typical household does nearly 400 loads of laundry a year at about 40 gallons of water per load. To reduce the amount of energy used to wash and dry a load of clothes, you need to use cooler water and use less water.

What Should I Look for With Regard to Energy Efficiency in a New Clothes Washer?

Washers come in two designs: front-loading and the more familiar top-loading version. ENERGY STAR® models are available in both designs, either of which will be more energy and water efficient than non-ENERGY STAR® models. Front- loading machines are similar to the washers used in laundromats. These horizontal-axis or tumble- action machines repeatedly lift and drop clothes, instead of moving clothes around a central axis. To reduce water consumption, they spray clothes with repeated high-pressure rinses to remove soap, rather than soaking them in a full tub of rinse water. Top-loading washers use sensor technology to closely control the incoming water temperature. Be aware that although the terms are frequently used interchangeably, “front-loading” and “horizontal axis” are not always the same. There are top-loading horizontal axis machines available.

All ENERGY STAR® residential clothes washers must meet the minimum Integrated Modified Energy Factor (IMEF) of 2.06 for ENERGY STAR® models. The IMEF measures the energy used during the washing process, including machine energy, water heating energy, and dryer energy. Higher the IMEF corresponds to more efficient clothes washer.

In addition, new ENERGY STAR® models have a maximum Integrated Water Factor (IWF) of 4.3. The IWF measures the gallons of water used per cycle per cubic foot (for example, a 3.0 cubic foot washer using 27 gallons per cycle has a water factor of 9.0). The lower the IWF, the less water the machine uses.

When comparing EnergyGuide labels look at the tub capacity printed on the label. Determine the tub capacity of the washer needed with your laundry needs in mind. A large-capacity machine is probably not the best choice for a two adult household that produces less laundry than one with four children in the family.

What Should I Look for With Regard to Energy Efficiency in a New Clothes Dryer?

Clothes dryers too have become more energy efficient. Look for models that have a moisture sensor and automatic shutoff feature; this helps prevent over drying, which not only wastes energy but also is hard on clothes. The best models have moisture sensors in the drum; lower priced models have thermostats that “infer” dryness by measuring the temperature of the exhaust air. Either is a much better deal for you than the older, timer-only machines; compared to them, you can save 10% with a temperature-sensing control and 15% with a moisture-sensing control.

Both electric and gas-fired dryers are available. New gas-fired models are required to have electronic ignition, which is more efficient than pilot lights.

Note that in 2015 ENERGY STAR® created criteria for rating clothes dryers They are rated by Combined Energy Factor (CEF). A CEF rating is somewhat similar to miles per gallon for a car. But, in this case, it is the measure of pounds of clothing per kilowatt- hour of electricity. The CEF for a standard capacity electric dryer is 3.93. For gas dryers, the minimum CEF is 3.48. The rating for gas dryers is provided in kilowatt-hours even though the primary source of fuel is natural gas.

The exhaust system of the dryer is extremely important. Try to have as short and straight a duct to the outside as possible, and make sure the duct is made of smooth metal—some building codes have requirements for both maximum length and material. Flexible vinyl duct should be avoided because it restricts airflow, can be crushed, and may not stand up to the high temperatures of the dryer.

References and Resources:

• ENERGY STAR(n.d.), Clothes Washers Key Product Criteria: https://www.energystar.gov/products/appliances/clothes_washers/key_product_criteria

• ENERGY STAR(n.d.), Clothes Dryers Key Product Criteria: https://www.energystar.gov/products/appliances/clothes_dryers/key_product_criteria

Developed as part of the NASULGC/DOE Building Science Community of Practice. The factsheet editors are: Robert "Bobby" Grisso, Extension Engineer, Biological Systems Engineering; Martha A. Walker, Ph.D, Community Viability Specialist, Central District; and John Ignosh, Extension Specialist, Biological Systems Engineering.
